Mesh laminated glass

Discover a new world of decorative laminated glass with our robust, attractive mesh laminates

Abstract gradient of white, blue, and purple. The darkest color is a deep indigo.

TG MI is laminated glass with mesh interlayers. Ideal for eye-catching structural, decorative or architectural applications.

Quality

all products are Kitemark-approved and tested to relevant BSI standards.

Convenience

with dozens of glass processing options, ToughGlaze is the only supplier you ever need to work with.

Peace of mind

our state-of-the-art facilities and deep industry knowledge mean you're always in safe hands.

A black outline of a downward-pointing chevron shape against a white background.

What is it?

Showcase the beauty of glass on metal

Bring your ideas to life with our attractive wire mesh glass laminates.

Are you looking for a unique decorative glass solution for your next project?


TG MI is a unique form of laminated glass with a metal mesh interlayer. It combines the beauty of woven metallics with the strength and practicality of glass.



Choose TG MI and unlock a whole new palette of colour, texture and aesthetic appeal. It's a modern, elegant solution for architects and interior designers who want to maximise visual impact.

Robust

all laminated decorative glass is Kitemark-approved and tested to relevant standards.

Versatile

TG MI can be customised to suit a broad range of internal and external applications.

Made to measure

we'll cut and process your glass to meet your exact specification.

This comes up often. Georgian wired glass (sometimes called wire mesh glass or wired safety glass) is a traditional grid-pattern glass made by casting a wire mesh into a single annealed glass pane. It is a different product to TG MI.



TG MI is a modern decorative laminate. The mesh is for visual effect, not fire performance. If you need fire-rated glass for your project, see our fire-rated glass page for E30 to EI120 options tested to BS EN 1364-1:2015.

Mesh laminated glass is not the same as Georgian wired glass

Specifications

Glass and interlayer options

When you work with ToughGlaze, you get access to one of the UK's most advanced glass processing facilities. With our equipment and industry knowledge, we can customise TG MI to meet almost any specification.

1. Toughened or annealed glass

As a form of decorative laminated glass, TG MI can incorporate various glass types to suit a wide range of applications. Choose from annealed, heat-strengthened or tempered glass with the wire mesh interlayer of your choice.

2. Waterproof interlayer

As standard, TG MI comes with a unique waterproof interlayer that's been specially developed by our experts. This makes it ideal for exterior applications, as well as damp environments like bathrooms.

3. SGP interlayer

SGP (ionoplast) laminates are five times stronger and up to 100 times stiffer than conventional laminate materials. Ideal for frameless structural glass.

4. PVB interlayer

Standard PVB laminate materials are also available. These afford impressive strength and can be custom-made for acoustic applications.

Close-up of a turquoise glass corner on a white surface
  • Maximum size subject to mesh roll width
  • Maximum laminating size: 2,600 x 4,300 mm
  • Thickness range: 9.5 mm to 60 mm
  • Standards: Kitemark approved, tested to relevant BSI standards for laminated glass
  • Fire rating: not fire-rated. See our fire-rated glass page if needed

Technical specifications

What we make

Choose your design

Browse our hand-picked selection of marvellous metallics.

Inspiration is only a click away. We've curated a catalogue of woven metal interlayers so you'll have the flexibility to deliver exactly what your customer wants.

Choose from dozens of designs in a range of mesh patterns and materials, including bronze, copper, brass and stainless steel.


We work with leading architectural mesh manufacturers including Cadisch MDA, GKD, Mesh Art, TTM Rossi, Syntarqui and Chelsea Artisan, depending on the design, scale and finish your project requires. If you have already specified a mesh from one of these suppliers, we can almost certainly laminate it for you.



Want to test the waters? Ask for our bespoke project sampling and mockup service.

TGM-01-BS-BRASS

GM-09-AL-ALUMINIUM

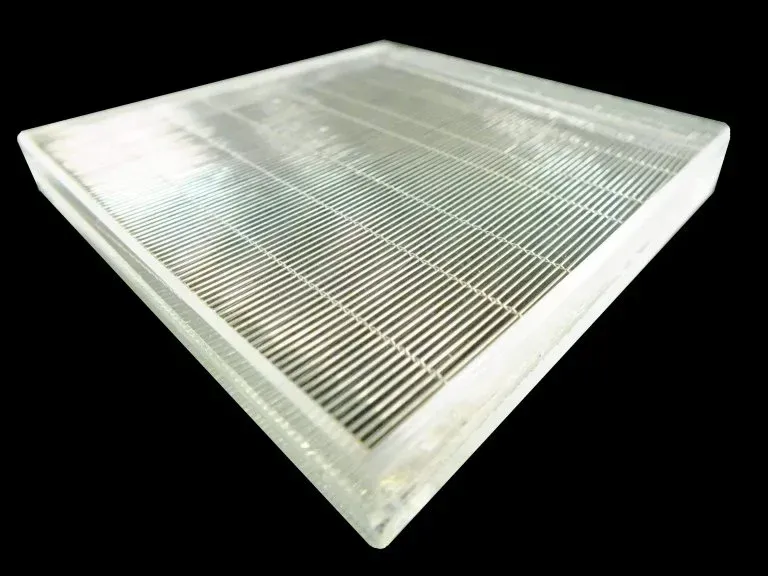

TGM-08-SS-STAINLESS

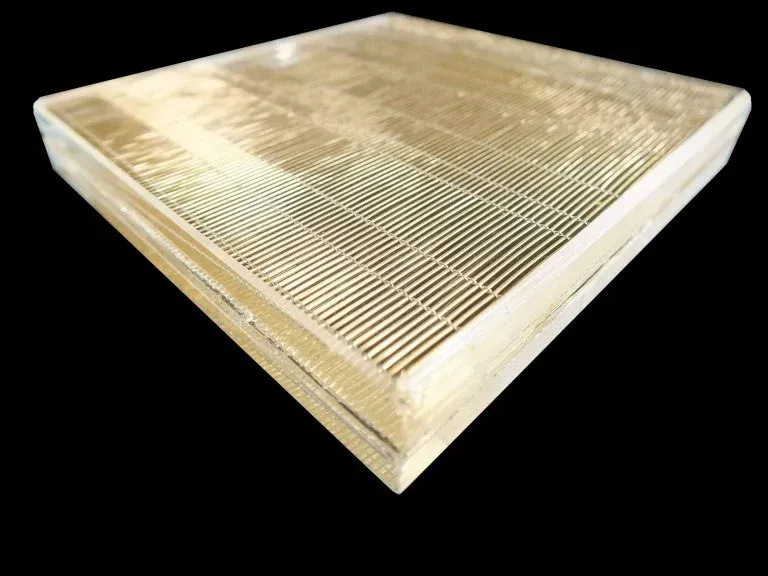

TGM-08-BZ-BRONZE

TGM-07-SS-STAINLESS-

TGM-07-BZ-BRONZE

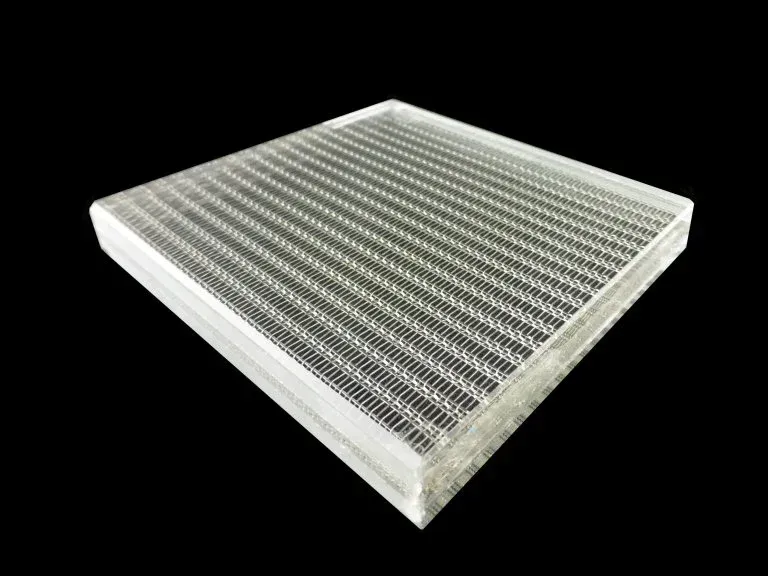

GM-06-SS-STAINLESS

TGM-06-BZ-BRONZE

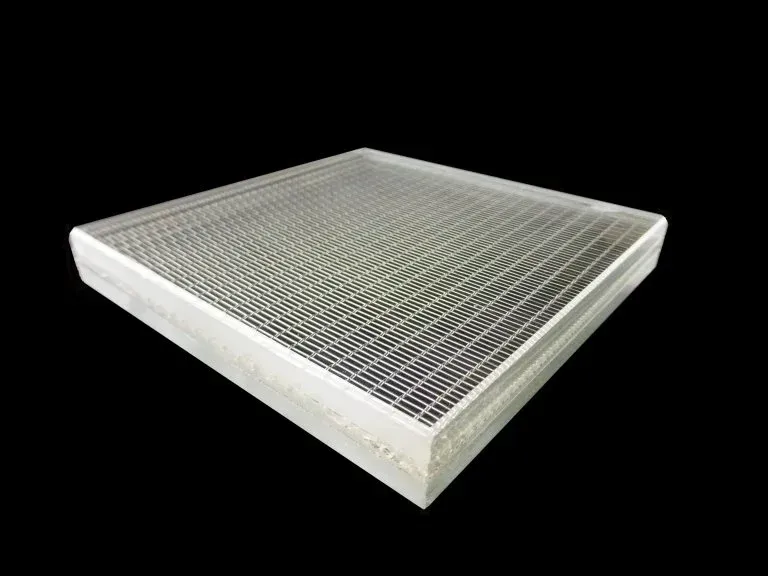

TGM-05-SS-STAINLESS

TGM-05-BZ-BRONZE

TGM-05-BR-BRASS

TGM-04-CO-COPPER

GM-04-BS-BRASS

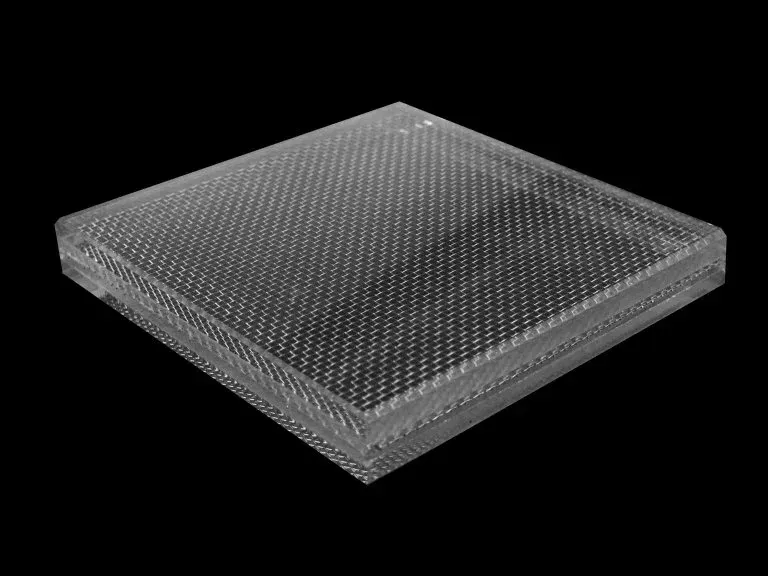

TGM-03-SS-STAINLESS

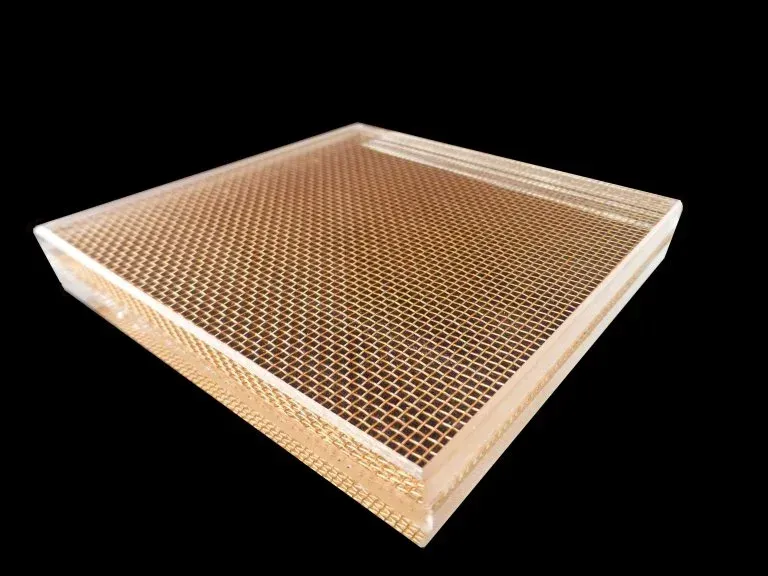

TGM-03-CO-COPPER

TGM-03-BS-BRASS

TGM-02-BZ-BRONZE

TGM-01-BZ-BRONZE

TGM-02-BR-BRASS

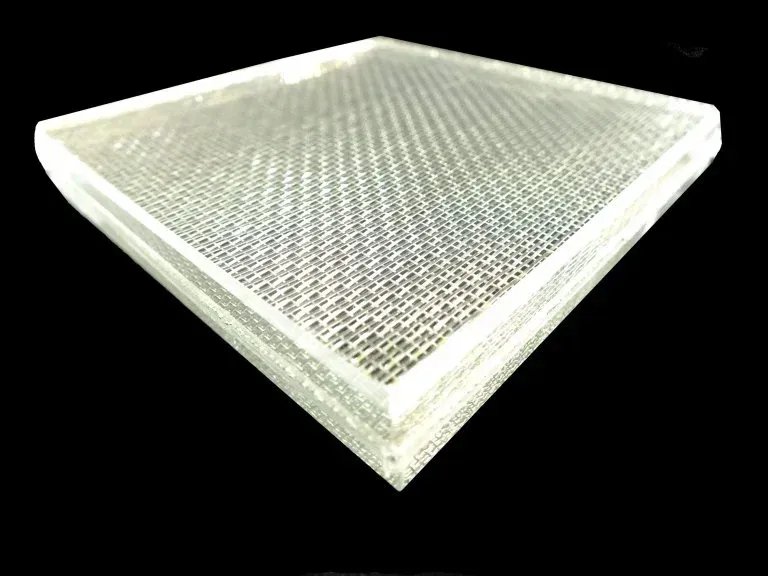

TGM-02-SS-STAINLESS

Cannot see the right pattern? We can source bespoke meshes for your project. If you have a particular pattern, scale or material in mind, send us a reference image or a brief and we will quote against it.

Where it is used

Industry applications

TG MI is ideal for any application that calls for a dramatic and contemporary aesthetic, whether that's a partition, a screen or a facade. Whichever way you use it, you can expect a strong and long-lasting product that's Kitemark-approved and certified to relevant standards.

Bright, empty hospital corridor with glass walls and white floors, lit by overhead fluorescent lights

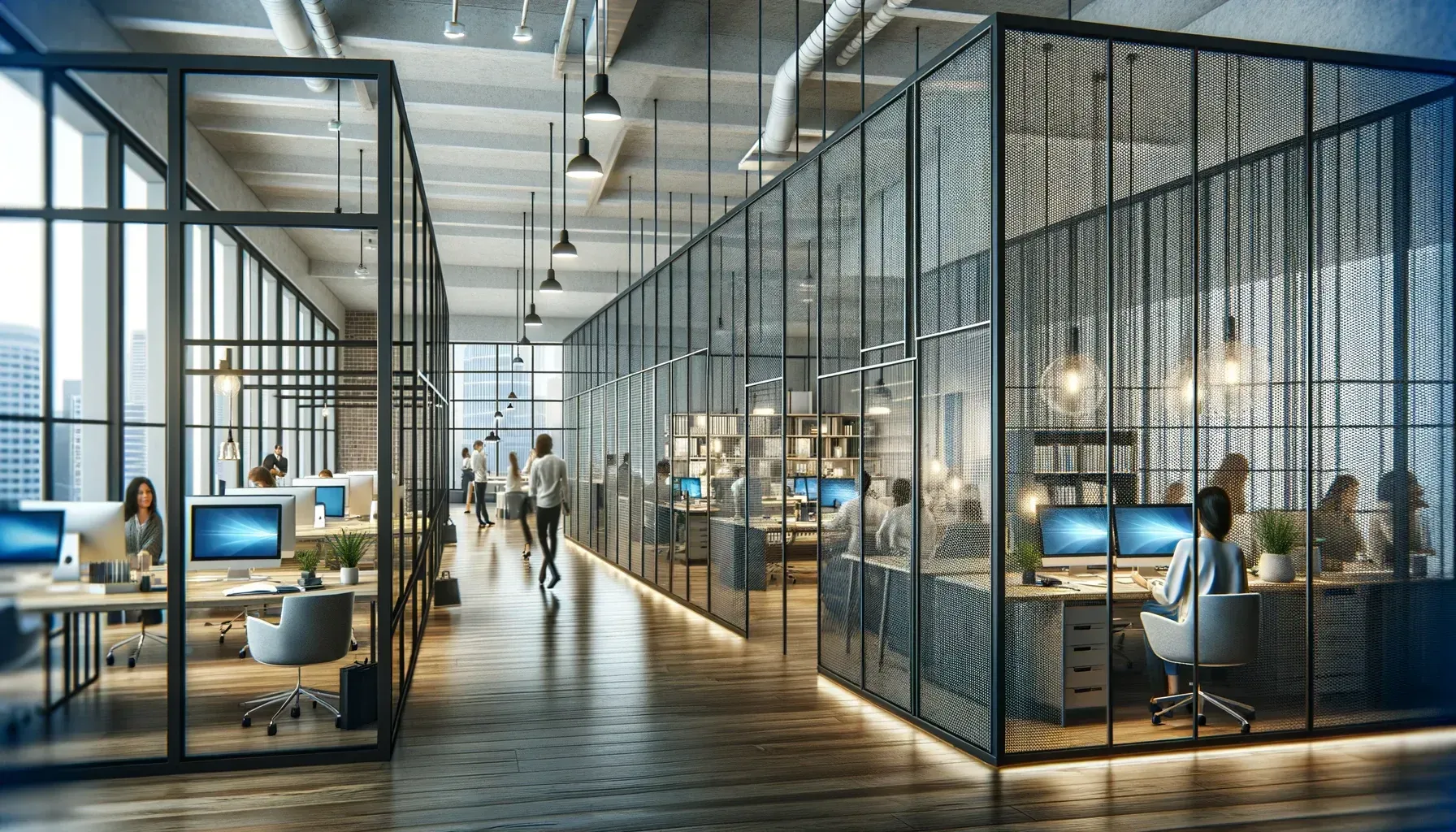

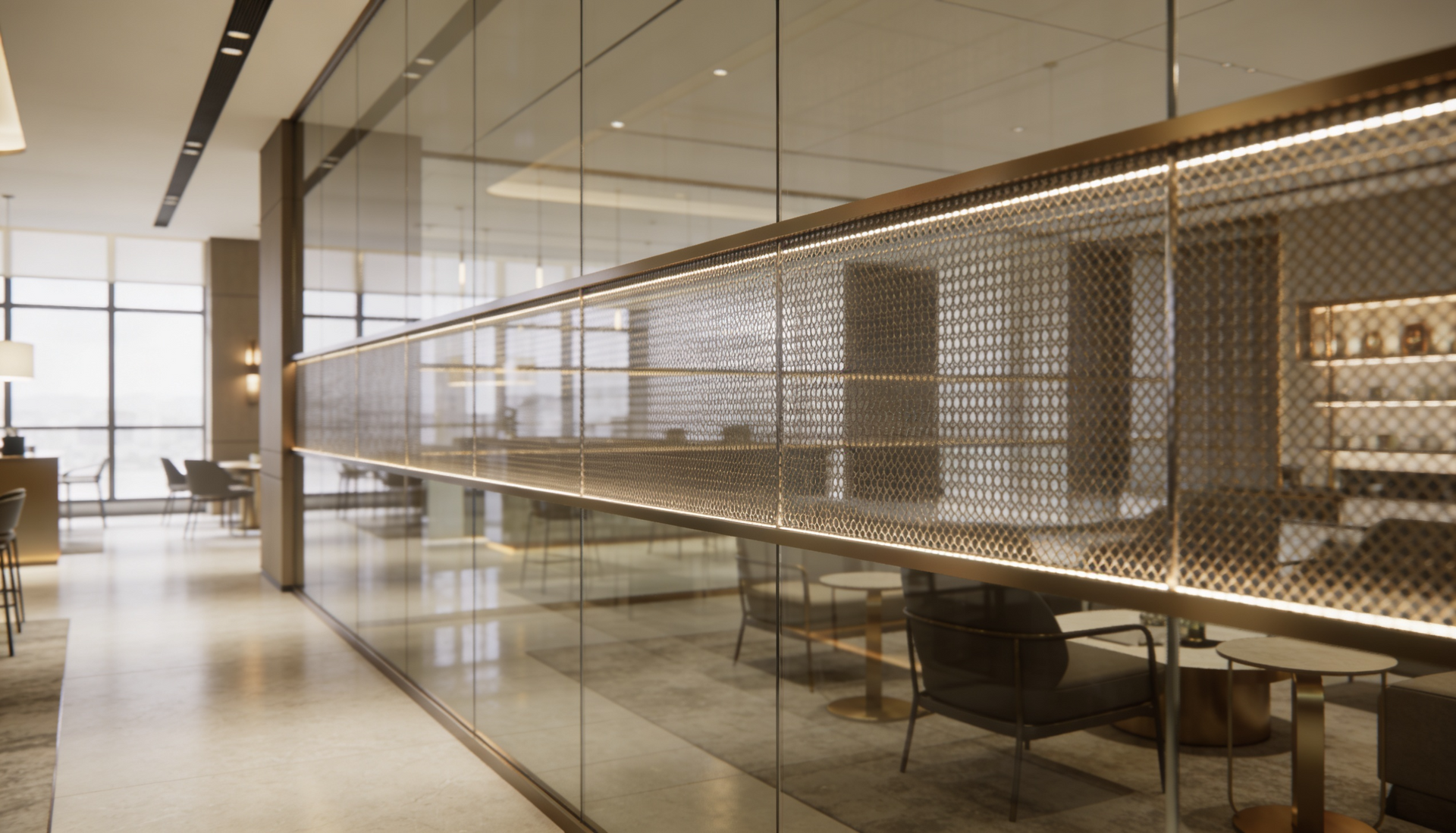

Mesh-laminated partitions

Harness the beauty of metal mesh to create statement-making decorative glass partitions. We can cut, process and deliver them to your exact specification, including for office breakouts, meeting rooms and retail fit-outs.

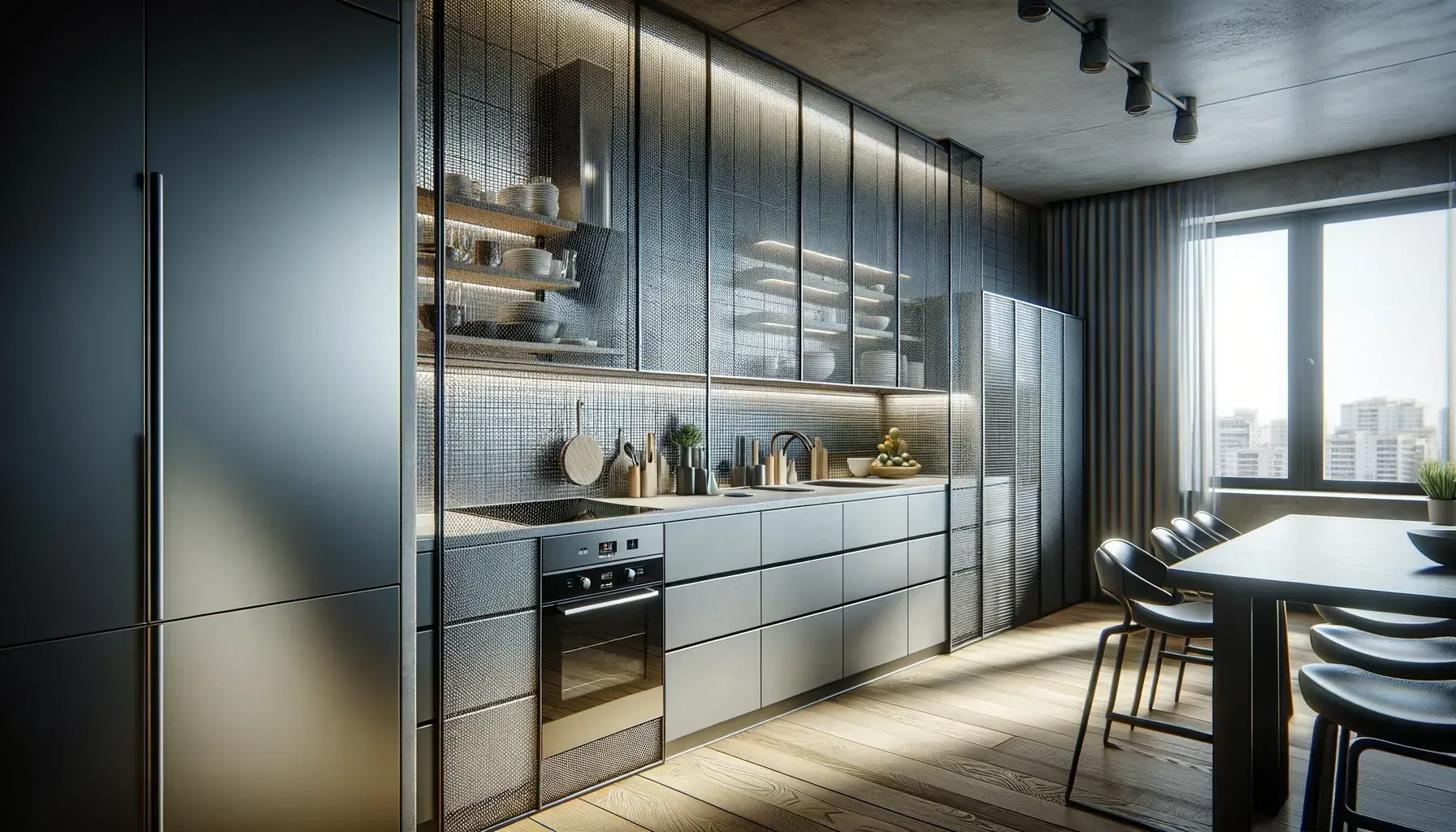

Mesh-laminated splashbacks

These are not your ordinary splashbacks. Our laminated mesh can be combined with opaque or mirrored glass backings to achieve dazzling decorative effects.

Mesh-laminated balustrades

We supply balustrade manufacturers with made-to-measure mesh laminate that delivers on strength, aesthetics and practicality.

Mesh-laminated glazing and facades

For exterior applications, our mesh laminated glass can be incorporated into insulated glass units (IGUs) and combined with specialist interlayers for acoustic applications. A striking option for architectural mesh facades on commercial and hospitality projects.

Why ToughGlaze

Specified by architects, contractors, glaziers, shopfitters and interior designers across the UK

At ToughGlaze, we aim to be the only glass supplier you ever need to work with.

Every TG MI panel is processed, laminated, cut and finished in-house. One supplier, one production process, one point of contact.

  • Top of our glass since 1993
  • 197,000 square foot UK factory, one of the largest of its kind in the UK
  • Kitemark-approved and tested to BSI standards
  • ISO 9001:2015 accredited for quality management
  • Fleet of 30+ vehicles, FORS Bronze accredited, UK-wide distribution depending on order
  • Bespoke mesh sourcing through partnerships with Cadisch MDA, GKD, Mesh Art, TTM Rossi, Syntarqui and Chelsea Artisan
  • Worked with household names including Waitrose, Balfour Beatty and London King's Cross

Need a quote?

Got a big project and a tight deadline? Speak to our team.

How it is made

Customise your mesh laminated glass

Take advantage of our industry-leading facilities and make your mesh glass even more impressive. Choose from a wide range of decorative processes, which can be combined to create eye-catching and innovative effects.

1. Screen printing

Our state-of-the-art screen printing process allows for full coverage up to the edge of the glass. Apply it to laminated mesh to achieve dramatic fusions of light, colour and texture.


Each option box has a 'Learn more' button linking to the relevant product page (see internal linking block at the end of Part 2).


2. Coloured interlayers

Choose our coloured interlayers to harness striking tonal combinations and frosted effects. More than 3,000 shades are available, all highly resistant to direct sunlight.


3. Edge lighting

Turn your mesh laminated glass into an illuminated wall feature or lighting fixture with our innovative edge lighting solution, developed in partnership with a leading LED lighting firm.

FAQs

Frequently asked questions

  • What is mesh laminated glass?

    TG MI mesh laminated glass is a type of laminated decorative glass. It consists of a decorative metal mesh sandwiched between protective glass layers. It also includes a structural interlayer made of PVB, waterproof polymer or extra-strong SGP.


    Mesh laminate is ideal for architectural, structural and decorative applications. We've selected a diverse catalogue of materials, colours and mesh designs to give you maximum aesthetic flexibility. You can also complement the mesh interlayer with a broad range of decorative glass effects, such as digital printing, sandblasting and colour coating.


  • Is mesh laminate suitable for exterior use?

    Yes. Mesh laminated glass can be incorporated into insulated glass units (IGUs) for exterior applications. What's more, our laminated mesh includes a special water-resistant interlayer as standard. This makes it suitable for wet or damp environments.

  • Is your mesh glass fire-rated?

    TG MI is a form of laminated decorative glass with a mesh interlayer. It is not the same product as wire mesh glass, which is often specified when some level of fire resistance is required.


    Our mesh laminated glass is intended for decorative and structural applications and is not fire-rated. We do, however, offer fire-resistant tempered glass that's E30-rated and tested to BS EN 1364-1:2015.


  • Is mesh laminated glass the same as Georgian wired glass?

    No. Georgian wired glass is a traditional fire-resistant glass with a cast-in wire mesh, used in some legacy fire safety applications. Mesh laminated glass is a modern decorative laminate. The mesh in TG MI is for visual effect, not fire performance. If you need fire-rated glass, see our fire-rated glass page.

  • What mesh materials and patterns are available?

    We stock a curated range of mesh designs across five materials: brass, bronze, copper, stainless steel and aluminium. We work with leading architectural mesh manufacturers including Cadisch MDA, GKD, Mesh Art, TTM Rossi, Syntarqui and Chelsea Artisan. If none of the stocked options fit, we can source bespoke meshes to match your specification.

  • What sizes can you make?

    Maximum laminating size is 2,600 mm by 4,300 mm. Thickness ranges from 9.5 mm to 60 mm. The maximum continuous mesh size depends on the roll width of the chosen mesh, so larger panels may need to be split or specified with a particular pattern in mind. Get in touch with your project specification and we will confirm what's possible.

  • Can mesh laminated glass be used as safety glass?

    Yes, with the right build-up. Specified with toughened glass plies and an appropriate structural interlayer, TG MI can meet the requirements of laminated safety glass under the relevant BSI standards. We will confirm the build-up needed for your project as part of the quote.

  • Can I get a sample before I commit?

    Yes. We offer a bespoke project sampling and mockup service. Send us your project brief and we will help you choose the right mesh, glass and interlayer combination. Particularly useful for high-spec architectural projects where the panel needs sign-off from the client or designer before production.
